ARIA

2.700,00

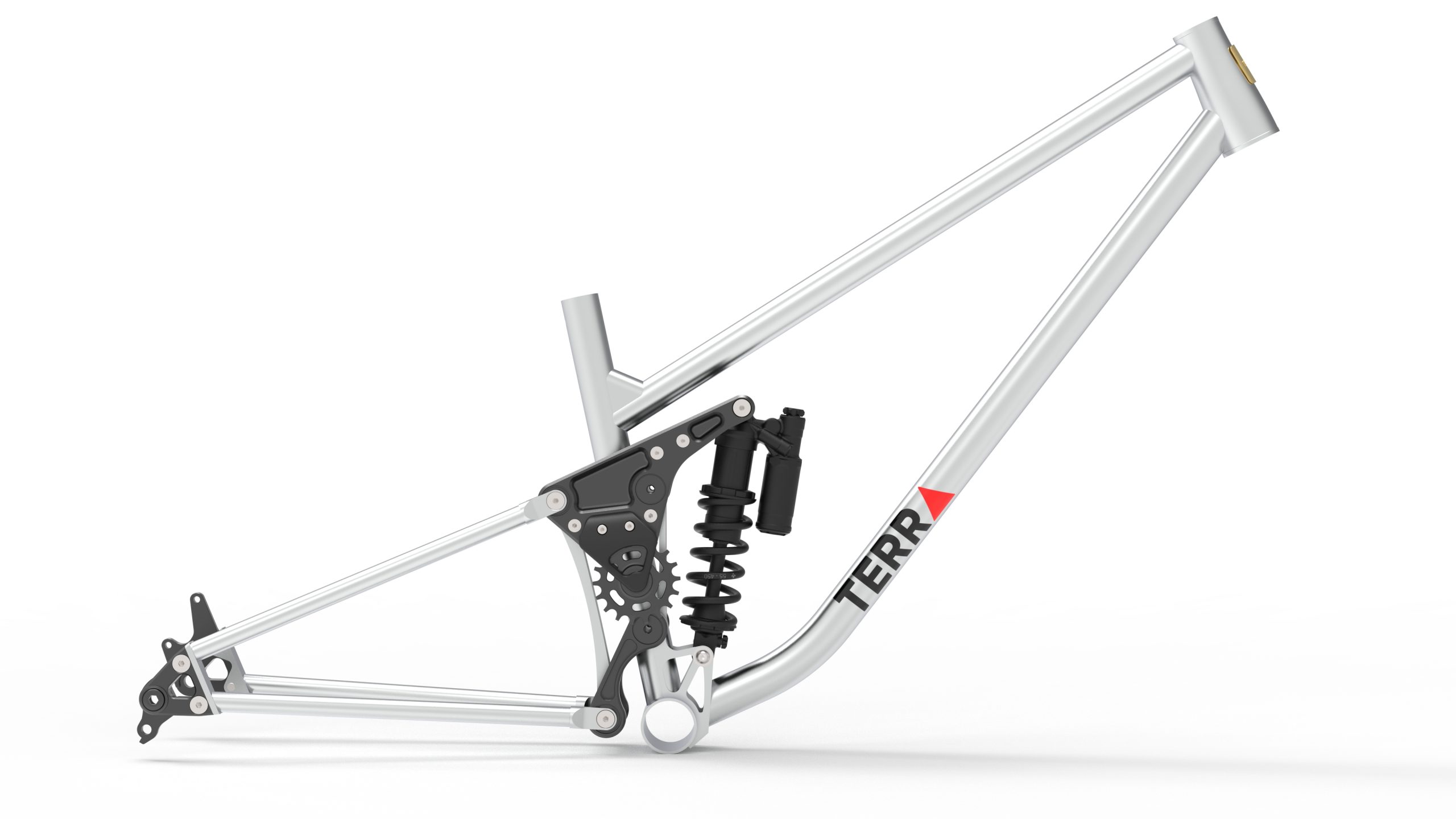

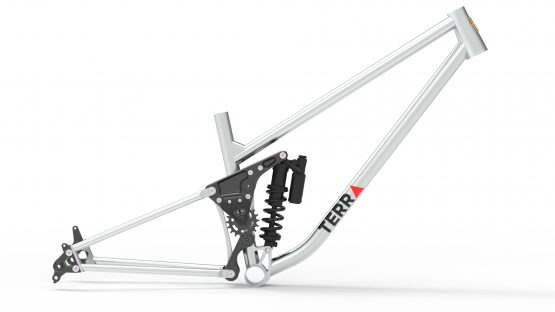

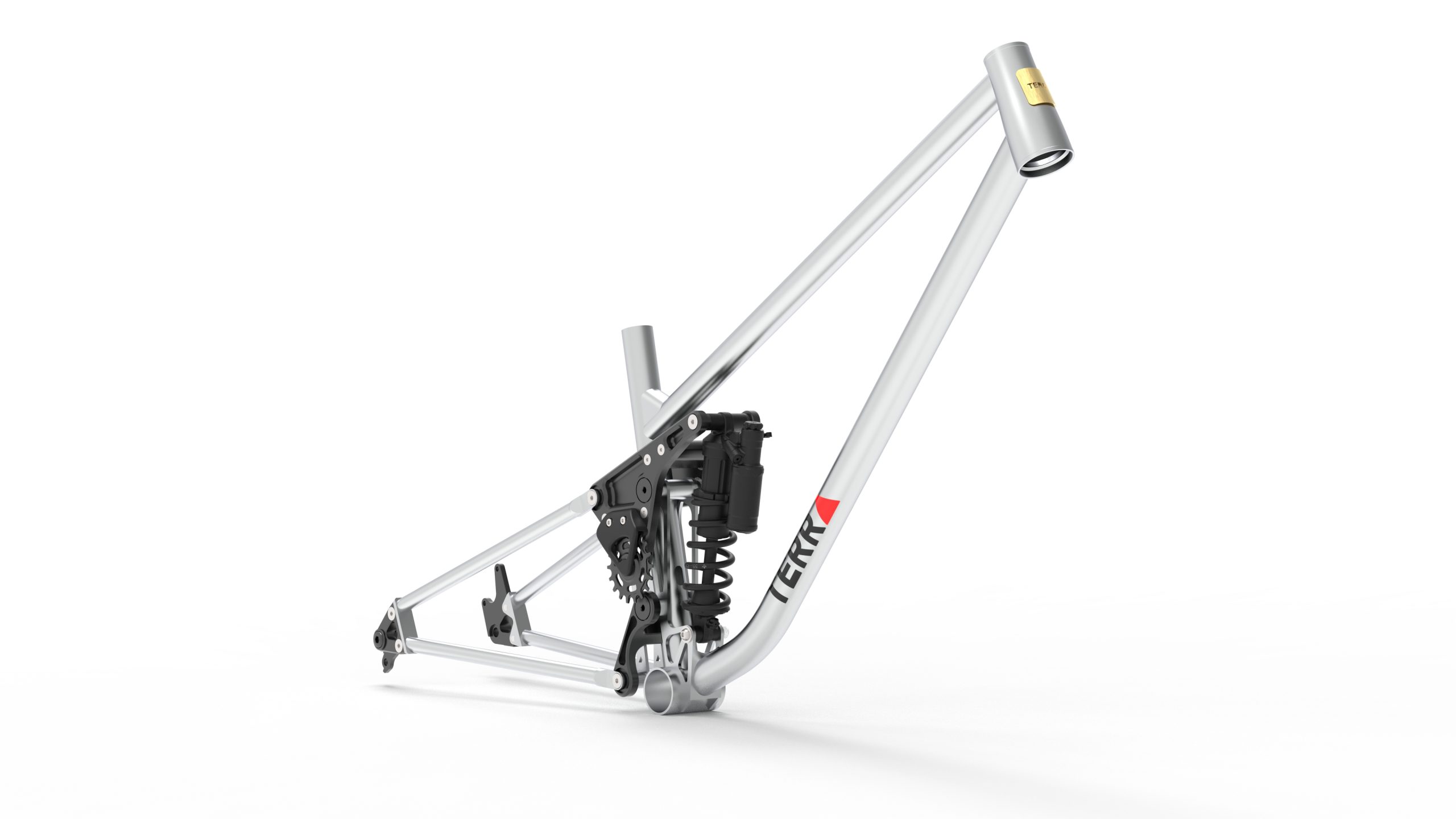

ARI▲ Frame

Modern enduro mountain bikes have to descend fast and pedal efficiently to save energy. They must provide maximum performance during races and at the same time let you enjoy the best of bike parks. ARIA is a game changer, thanks to i-track suspension  kinematics and  CrMo steel tubing. A downhill bike with efficient pedaling and the comfort of steel tubing.

FEATURES

SPECS:

  • Dedacciai tubes
  • 180mm suspension forks
  • 180mm rear travel with 230x65mm shock – 160mm rear travel with 230x55mm shock
  • IC52 / IC52 tapered head tube
  • T47 73mm threaded bottom bracket
  • 148×12 thru axle with Sram UDH hanger
  • 29 x 2,4″ tire housing
  • 31.6mm stealth routing dropper-compatible seat tube
  • 34.9mm seat tube clamp
  • External cable routing
  • Every frame is made to order, to ensure accurate lead times and continuity, average lead time 6-8 weeks, may be longer with custom paint and decals.
  • The frame is hand welded by Meccano Lab ( Meccanolab ) in Arezzo, Italy, in the heart of Tuscany.
    CNC parts are made by Materia Racing (Materia_racing) also from Arezzo.

GEOMETRY

ARIA – GEOMETRY
Size M L XL
Head Tube Angle 64°
Seat Tube Angle 78°
Fork Lenght (Axle to Crown) 581
Fork Offset 44
Reach 465 485 505
Stack 640 640 640
Effective Tope Tube 620 620 640
Seat Tube Length 400 430 460
Chainstay Length 455
Headtube Length 120
Wheelbase 1270 1290 1310
BB Drop 30
BB Height 345
Shock 230×65 – rear travel 180
230×57.5 – rear travel 165
Hanger SRAM UDH

Descrizione

I-TRACK SUSPENSION

ARIA is not a simple high virtual pivot suspension. I-track is a patent-pending rear suspension system which allows pedalling performance to be tuned independently of any other design variable. At the heart of the i-track suspension system is an idler pulley which controls the length of the upper chainline, running between the front and rear sprockets.

As the suspension is compressed, the idler moves along a predetermined path (or track, hence the name), controlling the way pedalling forces are transmitted to the suspension in a way that is not possible with any other suspension design.

ARIA with i-track suspension system is a bike that performs ideally in every situation. Through the optimization of the position of the floating pulley, we obtain optimal anti-squat and anti-rise parameters, despite a very high virtual center pivot.

But, above all, we lowered the pedal kick by 30% compared to a traditional system, even reaching an absent kick back for the hardest ratios, this gives extreme driving comfort and a feeling of absolute freedom of the rear suspension.

PINKBIKE PRESENTATION: www.pinkbike.com/news/the-european-bike-project

ORDER NOW

The frames are made month to month with a limited amount of build slots each month. Frame total cost 2700.00 euro without shock.

You’ll pay an initial 800.00 euro deposit with the remaining balance to be paid when the frame is ready to ship.
Once you have ordered your frame we will be in touch to confirm and discuss colour options.

(Average lead times 6-8 weeks, from start of fabrication, we will let you know when your frame goes into production, when you place your order).

If you want to purchase a frame to be delivered outside of the EUROPE region please email us at: info@terra.mountainbikes.com so we can calculate the best shipping price to your country.

PRICE INCLUDE SPARE DERAILLEUR HANGER, REAR AXLE, SEAT COLLAR AND TAX.
PRICE NOT INCLUDED SHOCK, HEAD, SHIPPING, PACKING AND CUSTOMS FEES.

FABRICATION PROCESS TAKES APPROXIMATELY 4 MONTHS FROM THE PAYMENT OF A DEPOSIT.
